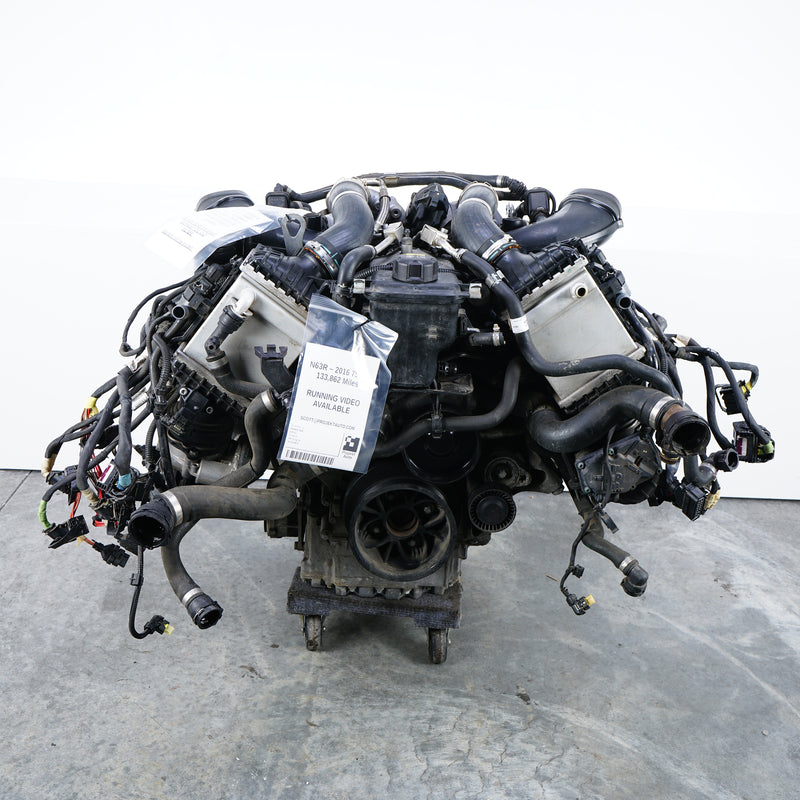

16-19 OEM BMW Engine N63R N63TU2 G30 M550i G12 750i xDrive AWD 133K with Video
N63R N63TU2 G30 M550i G12 750i xDrive AWD 133K with Video
16-19 G30, G12, G11
Condition
- Used
- Good, running engine. 133K miles. Removed from a running and driving 2016 750iX. No cut hoses or wires. Video Available. See Full Description!!
Catalog Details
- Official Part Name:
- RP Engine
- Interchangeable Part Numbers:
- 11005A1A4E3, 11005A1A4E4, 11002455304, 11002409324, 5A1A4E3, 5A1A4E4, 2455304, 2409324
Important Notices
Fitment Information
Only for pre-facelift G12 750iX and G30 M550i up to model year 2019.
Professional Installation Required
This engine must be installed by a certified automotive technician. The installation procedure is not DIY-friendly. Do not purchase this if you cannot make arrangements for professional installation.
Commercial Delivery Address Required
This engine ships via freight only. If you do not have a commercial delivery address, please contact us before purchase to discuss alternative delivery options. Our freight shipping price assumes delivery to a commercial address with a loading dock or forklift. Additional charges may apply for residential delivery or locations without these facilities.
Vehicle Verification Required
Please contact us with your VIN so we can confirm this engine is compatible with your vehicle. If we do not receive your VIN promptly, we may cancel your order.
Item Details
Engine Inspection
This N63TU2 is ready to use with minimal preparation. It includes all photographed accessories. This engine is original to the donor. The donor car was driven at full operating temp under various loads without issue for some time. There is a video of the donor 750i running and driving prior to removal. No errors in either DME. Emission monitors were complete. The car was making full power without issue. Compression and leak-down have been checked and pass. All eight cylinders over 180 PSI with no unusual deviation. The cylinders have been checked with a camera and look fine. Valve stem seals are not leaking or smoking. No sludge inside the crankcase when checked with a camera. The engine has oil seeping near the bottom rear of the engine. Potentially the pan gaskets or rear main seal. The CCV hoses are cracked and need to be replaced. This engine has not been sprayed or cleaned. You are seeing it exactly as removed from the car. You will receive it exactly as photographed. The engine is stored indoors, wrapped and sealed on a pallet. Everything inside the engine is likely 100% original. Please plan accordingly for anything additional maintenance or preventative that may need to be done, considering the mileage and age of this engine. If you need any part numbers, sources, or guidance for your project, please reach out to us.
This engine has been inspected and tested by a certified technician. The donor vehicle was mechanically stock and running well. The engine long block assembly has been tested at full operating temperature.
Please review the high-resolution photos carefully. Your purchase of this engine constitutes acceptance of its visual condition and any cosmetic imperfections.
Disclaimers
Pre-owned Engine Disclaimer
This engine long block assembly is used and should be properly serviced and prepared by an ASE or BMW certified facility prior to installation. For optimal performance, consumable items such as seals, gaskets, hardware, and other wear components should be replaced or refurbished beforehand. For example, this includes visibly leaking gaskets, cooling hoses, crankcase ventilation components, valve stem seals, brittle plastics, engine bearings, water pumps, and more.
Returns
This engine can be returned within 14 days of delivery. Unless other arrangements have been approved, this engine must be returned using the same delivery service, in the same condition, and packed as originally received.
If this engine has been installed, modified, or tampered with, it is no longer eligible for a return under this policy.
See warranty details below for coverage after installation. You are responsible to carefully review the photos. No returns will be accepted for cosmetic defects that are clearly photographed.
Warranty
This engine is guaranteed to be free of major defects for 14 days after delivery. Warranty returns and exchanges are processed individually, at our discretion. If this engine has been installed, supporting documentation for the warranty return or exchange is required.
At a minimum, supporting documentation should include records of proper installation and procedures performed by an ASE or BMW certified facility, along with clear documentation of the failure mode.
This long block coverage applies to major components only: engine blocks, cylinder heads, crankshafts, pistons and connecting rods, oil pump, camshafts, and valve train.
All additional engine accessories and trims are considered extras and are not covered by any return or warranty policy. Extras may include turbochargers, manifolds, fuel pumps, injectors, belt-driven components, electronic modules, wiring harnesses, sensors, solenoids, actuators, cooling system components, engine mounts, and more. These items are included as-is.
Known issues inherent to this engine may not be covered.
Refunds and exchanges apply exclusively to this engine only. No compensation will be provided for any additional expenses incurred. These uncovered costs include labor, rental cars, additional parts, fluids, materials, tools, and similar items.
All returns are thoroughly reviewed, and Projekt Auto Parts reserves the right to pursue legal action against any fraudulent or abusive parties.
Fits These Cars
BMW 5 Series
Sedan - G30
- 2017-19
- M550i xDrive • N63R • JB93
BMW 7 Series
Sedan - G11
- 2016-19
- 750i xDrive • N63R • 7B03
Sedan - G12
- 2016-19
- 750i xDrive • N63R • 7F23
Donor Vehicle Details
Source Vehicle
- VIN:
- WBA7F2C55GG417161
- Vehicle:
- 2016 BMW 750i xDrive
- Chassis Code:
- G12
- Production Date:
- 2015-10-01
- Odometer:
- 133862 miles
Specifications
- Body Style:
- Lim
- Drive:
- AWD
- Transmission:
- Automatic
- Engine Code:
- N63R
- Model Type:
- 7F23 750iX
Colors & Interior
- Paint:
- A96 Mineral White Metallic
- Upholstery:
- NAEW Ivory White Nappa Leather
Equipment
- S337:
- M Sports package
- S715:
- M Aerodynamics package
- S402:
- Panorama glass roof
- S416:
- Roller sun visor, rear lateral
- S441:
- Smoker package
- S453:
- Climate-controlled seats, front
- S456:
- Comfort seat with memory
- S465:
- Through-loading system
- S4AX:
- Fine wood varieg.ash chestnut/wood inlay
- S4HA:
- Seat heating, front and rear
- S4NB:
- Autom. climate control with 4-zone ctrl
- S4ND:
- Instrument panel, leather-covered
- S4T7:
- Massage function f.driver & fr.passenger
- S4UR:
- Ambient interior light
- S609:
- Navigation system Professional
- S610:
- Head-up display
- S645:
- BMW US Radio
- S650:
- CD player
- S655:
- Satellite tuner
- S688:
- Harman/Kardon surround sound system
- S6AC:
- Intelligent emergency call
- S6AE:
- Teleservices
- S6AK:
- Connected Drive Services
- S6AM:
- Real-Time Traffic Information
- S6AN:
- Concierge Services
- S6AP:
- Remote Services
- S6NW:
- Telephony with wireless charging
- S6U8:
- BMW gesture control
- S6WB:
- Multifunctional instrument display
- S6WD:
- WLAN Hotspot
- S552:
- Adaptive LED headlight
- S5A1:
- LED Fog lights
- S5AC:
- High-beam assistant
- S5AP:
- Decoding anti-glare high-beam assistant
- S5AT:
- Driving Assistant Plus
- S5DL:
- Surround View
- S5DP:
- Park Assist
- S5DS:
- Emergency release, luggage compartment
- S212:
- National brake system equipment
- S21H:
- BMW LA wheel, M double spoke 648 bicolor
- S248:
- Steering wheel heater
- S255:
- Sports leather steering wheel
- S258:
- Tyres with runflat properties
- S2TB:
- Sport automatic gearbox
- S2VB:
- Tyre pressure display
- S302:
- Alarm system
- S319:
- Integrated universal remote control
- S322:
- Comfort access
- S323:
- Soft-Close-Automatic doors
- S3AG:
- Reversing camera
- S3DS:
- BMW display key
- S3DZ:
- Omission of additional lettering, outer
- S823:
- Hot-climate version
- S840:
- High speed synchronisation
- S842:
- Cold-climate version
- S845:
- Acoustic fasten seat belt reminder
- S853:
- Language version, English
- S8KL:
- Oil service interval 15,000 km/12 months
- S8S4:
- Decoding, variable light distribution
- S8SM:
- Car ident. number visible from outside
- S8TN:
- Daytime driv.lights adjus.via light menu
- S760:
- High gloss shadow line
- S775:
- Headlining anthracite
- S1CA:
- Selection of COP-relevant vehicles
- S1CB:
- CO2 equipment
- S1MA:
- M sports exhaust system
- S9AA:
- Outer skin protection
- SA090:
- 90 Ah AGM battery
- SA96:
- mineral-weiss metallic
- SNAEW:
- Leather "Nappa/elfenbein-weiss"
