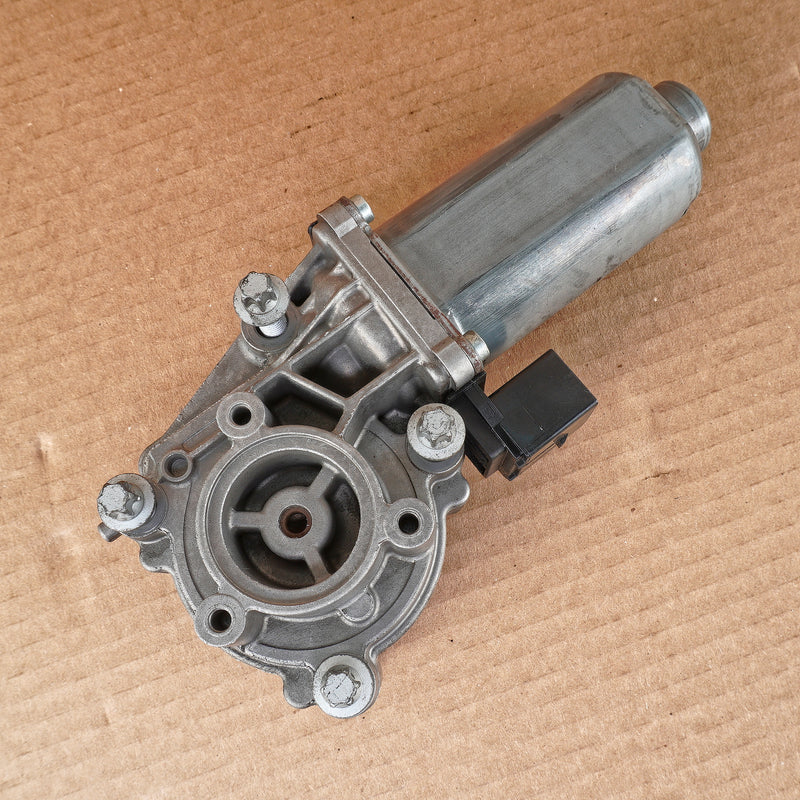

04-14 OEM BMW Transfer Case Actuator X5M X6M X5 X6 X3 ATC 7566250 E53 E70 E83
X5M X6M X5 X6 X3 ATC
04-14 E83, E72, E71, E70, E53
Condition
- Used
- Removed from a running and driving X5M with no VTG errors or transfer case issues.
Catalog Details
- Official Part Name:
- Actuator
- Interchangeable Part Numbers:
- 27107566250, 27102449709, 27107568267, 27107566296, 27107541782, 7566250, 2449709, 7568267, 7566296, 7541782
- OE Manufacturer:
- Bosch
- OE Number:
- 0130008507
Important Notices
Fitment Information
Calibration procedure must be performed after installation
Component Programming Required
This transfer case actuator requires professional programming and encoding specific to your application. These procedures differ from standard BMW FDL coding and are not DIY-friendly. Do not purchase this transfer case actuator unless you are knowledgeable and equipped with factory BMW programming tools or a high-end third-party BMW programming device. A smartphone BMW coding app or DIY scan tool will not be sufficient to complete these procedures.
Professional Installation Required
This transfer case actuator must be installed by a certified automotive technician. The installation procedure is not DIY-friendly. Do not purchase this if you cannot make arrangements for professional installation.
Vehicle Verification Required
Please contact us with your VIN so we can confirm this transfer case actuator is compatible with your vehicle. If we do not receive your VIN promptly, we may cancel your order.
Item Details
This transfer case actuator has been inspected and tested by a certified technician.
Please review the high-resolution photos carefully. Your purchase of this transfer case actuator constitutes acceptance of its visual condition and any cosmetic imperfections.
Disclaimers
Pre-owned Transmission/Transfer-case Disclaimer
This transfer case actuator is used. It should be properly serviced and prepared by an ASE or BMW certified facility prior to installation. For optimal performance, consumables such as seals, filters, gaskets, hardware, and other wear items should be replaced or refurbished. For enhanced reliability, replacing components like clutches, bearings, solenoids, valve body seals, and mechatronics is also recommended.
Returns
This transfer case actuator can be returned within 14 days of delivery. Unless other arrangements have been approved, this transfer case actuator must be returned using the same delivery service, in the same condition, and packed as originally received.
If this transfer case actuator has been installed, programmed, coded, modified, or tampered with, it is no longer eligible for a return under this policy.
See warranty details below for coverage after installation. You are responsible to carefully review the photos. No returns will be accepted for cosmetic defects that are clearly photographed.
Warranty
This transfer case actuator is guaranteed to be free of major defects for 14 days after delivery. Warranty returns and exchanges are processed individually, at our discretion. If this transfer case actuator has been installed, supporting documentation for the warranty return or exchange is required.
At a minimum, supporting documentation should include records of proper installation and procedures performed by an ASE or BMW certified facility, along with clear documentation of the failure mode.
Known issues inherent to this transfer case actuator may not be covered.
Refunds and exchanges apply exclusively to this transfer case actuator only. No compensation will be provided for any additional expenses incurred. These uncovered costs include labor, rental cars, additional parts, fluids, materials, tools, and similar items.
All returns are thoroughly reviewed, and Projekt Auto Parts reserves the right to pursue legal action against any fraudulent or abusive parties.
Fits These Cars
BMW X3
SUV - E83
- 2004-06
- X3 2.5i • M54 • PA73
- 2004-06
- X3 3.0i • M54 • PA93
SUV - E83 LCI
- 2007-10
- X3 3.0i • N52N • PC73
- 2007-10
- X3 3.0si • N52N • PC93
BMW X5
SUV - E53
- 2004-06
- X5 4.8is • N62 • FA93
- 2004-06
- X5 3.0i • M54 • FA13 • built after 10/2003
- 2004-06
- X5 4.4i • N62 • FB53
SUV - E70
- 2009-13
- X5 M • S63 • GY03
- 2009-10
- X5 xDrive35d • M57N2 • FF03
- 2007-10
- X5 3.0si • N52N • FE43
- 2007-10
- X5 4.8i • N62N • FE83
SUV - E70 LCI
- 2011-13
- X5 xDrive35d • M57N2 • ZW03
BMW X6
SUV - E71
- 2009-14
- X6 M • S63 • GZ03
- 2008-11
- X6 50iX • N63 • FG83 • built before 04/2010
- 2008-10
- X6 35iX • N54 • FG43
SUV - E72
- 2010-11
- X6 ActiveHybrid • N63 • FH03
