Engine

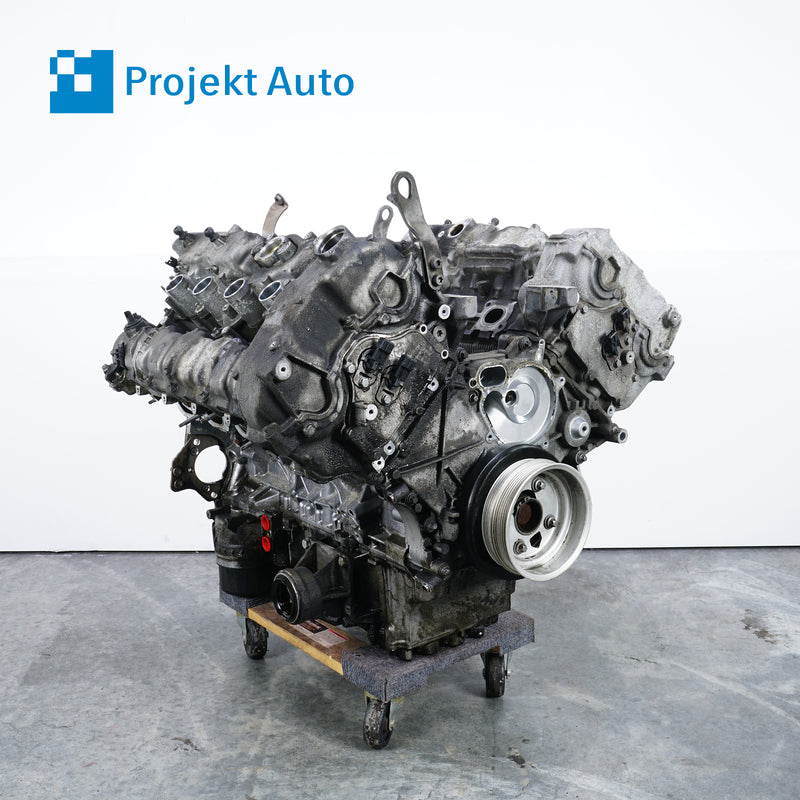

Long Block N63 4.4 AWD 650i 750i 93,700mls
10-13 F01, F02, F10, F13, F12, F07
Condition
- Used
- 94K miles. Tested with running/driving video. See photos and full description. Removed from a 2012 BMW 750i xDrive. No functional issues.
Catalog Details
- Official Part Name:
- Short Engine
- Full Part Number:
- 11002212338
- Interchangeable Part Numbers:
- 11005A4AED7, 11002468393, 11002466939, 11002296775, 11002296776, 11002212340, 11002160970, 11002160969
Important Notices
Fitment Information
This is a first generation N63. It has an AWD oil sump. It is a drop-in replacement for all 11-13 550iX, 2012 650iX, and 10-12 750iX models with first-gen N63 engines. This can't be used in later N63TU powered cars. It does not fit in the E70 chassis.
Professional Installation Required
This engine must be installed by a certified automotive technician. The installation procedure is not DIY-friendly. Do not purchase this if you cannot make arrangements for professional installation.
Commercial Delivery Address Required
This engine ships via freight only. If you do not have a commercial delivery address, please contact us before purchase to discuss alternative delivery options. Our freight shipping price assumes delivery to a commercial address with a loading dock or forklift. Additional charges may apply for residential delivery or locations without these facilities.
Vehicle Verification Required
Please contact us with your VIN so we can confirm this engine is compatible with your vehicle. If we do not receive your VIN promptly, we may cancel your order.
Item Details
Engine Inspection
This N63 has good internals with relatively low mileage. It has been stripped of accessories. This engine is original to the donor. The donor car was driven at full operating temp under various loads without issue. There is a video of the engine running and driving available. Compression and leak-down are within spec, per BMW TIS requirements. All eight around 180 PSI with no unusual deviation between any cylinders. The cylinders have been checked with a camera, they look about average for the mileage. Minimal imperfections on the Alusil bores. Carbon build up is average on the valves and piston tops. Valve stem seals did not seem to be smoking when the donor was left to idle. No sludge inside the crankcase when checked with a camera. The engine clearly has leaks from virtually every known problem area: valve covers, upper and lower oil pan, rear coolant passage, turbocharge oil return cover, timing covers, etc.. It is a really grimy engine, as you can see in the photos. We cannot clean it without risking water ingress, so you will receive it exactly as photographed. The engine is stored indoors, wrapped and sealed on a pallet. You should plan on a full reseal, at minimum. This is a 15 year old engine with near 100,000 miles. Everything inside the engine is 100% original, so you should strongly consider bearings, solenoids, main seals, timing chains, guides, tensioners, etc.. Those are ALL known problem areas for these BMW N63 V8s. Please plan accordingly for anything additional of that sort. If you need any part numbers, sources, or guidance for your project, please reach out to us.
This engine has been inspected and tested by a certified technician. The donor vehicle was mechanically stock and running well. The engine long block assembly has been tested at full operating temperature.
Please review the high-resolution photos carefully. Your purchase of this engine constitutes acceptance of its visual condition and any cosmetic imperfections.
Disclaimers
Pre-owned Engine Disclaimer
This engine long block assembly is used and should be properly serviced and prepared by an ASE or BMW certified facility prior to installation. For optimal performance, consumable items such as seals, gaskets, hardware, and other wear components should be replaced or refurbished beforehand. For example, this includes visibly leaking gaskets, cooling hoses, crankcase ventilation components, valve stem seals, brittle plastics, engine bearings, water pumps, and more.
Returns
This engine can be returned within 14 days of delivery. Unless other arrangements have been approved, this engine must be returned using the same delivery service, in the same condition, and packed as originally received.
If this engine has been installed, modified, or tampered with, it is no longer eligible for a return under this policy.
See warranty details below for coverage after installation. You are responsible to carefully review the photos. No returns will be accepted for cosmetic defects that are clearly photographed.
Warranty
This engine is guaranteed to be free of major defects for 14 days after delivery. Warranty returns and exchanges are processed individually, at our discretion. If this engine has been installed, supporting documentation for the warranty return or exchange is required.
At a minimum, supporting documentation should include records of proper installation and procedures performed by an ASE or BMW certified facility, along with clear documentation of the failure mode.
This long block coverage applies to major components only: engine blocks, cylinder heads, crankshafts, pistons and connecting rods, oil pump, camshafts, and valve train.
All additional engine accessories and trims are considered extras and are not covered by any return or warranty policy. Extras may include turbochargers, manifolds, fuel pumps, injectors, belt-driven components, electronic modules, wiring harnesses, sensors, solenoids, actuators, cooling system components, engine mounts, and more. These items are included as-is.
Fluid leaks and resulting damage from worn seals, gaskets, hoses, etc. are not covered.
Known issues inherent to this engine may not be covered.
Refunds and exchanges apply exclusively to this engine only. No compensation will be provided for any additional expenses incurred. These uncovered costs include labor, rental cars, additional parts, fluids, materials, tools, and similar items.
All returns are thoroughly reviewed, and Projekt Auto Parts reserves the right to pursue legal action against any fraudulent or abusive parties.
Fits These Cars
BMW 5 Series
GT - F07
- 2010-12
- 550i GT xDrive • N63 • SP43 • All
Sedan - F10
- 2011-13
- 550i xDrive • N63 • FU93 • All
BMW 6 Series
Convertible - F12
- 2012
- 650i xDrive • N63 • LZ53 • All
Coupe - F13
- 2012
- 650i xDrive • N63 • LX53 • All
BMW 7 Series
Sedan - F01
- 2010-12
- 750i xDrive • N63 • KC63 • All
Sedan - F02
- 2010-12
- 750Li xDrive • N63 • KC83 • All
Donor Vehicle Details
Source Vehicle
- VIN:
- WBAKC6C51CC396773
- Vehicle:
- 2012 BMW 7 Series
- Chassis Code:
- F01
- Production Date:
- 2011-10-01
- Odometer:
- 93681 miles
Specifications
- Body Style:
- Lim
- Drive:
- AWD
- Transmission:
- Auto
- Engine Code:
- N63
- Model Type:
- KC63 750iX
Colors & Interior
- Paint:
- 300 Alpine White 3
- Upholstery:
- NAD5 Saddle Brown Nappa Leather
Equipment
- S710:
- M leather steering wheel
- S715:
- M Aerodynamics package
- S7MP:
- Sports package
- S403:
- Glass roof, electrical
- S415:
- Sun-blind, rear
- S416:
- Roller sun visor, rear lateral
- S423:
- Floor mats velours
- S430:
- Interior/outside mirror with auto dip
- S441:
- Smoker package
- S453:
- Climate-controlled seats, front
- S455:
- Active seat for driver and front passenger
- S456:
- Comfort seat with memory
- S488:
- Lumbar support, driver and passenger
- S494:
- Seat heating driver/passenger
- S4B7:
- Fine-wood version Fineline highly shiny
- S4NB:
- Autom. climate control with 4-zone ctrl
- S4U1:
- Ceramic application, control elements
- S4UR:
- Ambient interior light
- S609:
- Navigation system Professional
- S610:
- Head-up display
- S615:
- Extended BMW Online Information
- S620:
- Voice control
- S639:
- Preparation f mobile phone cpl. USA/CDN
- S645:
- BMW US Radio
- S655:
- Satellite tuner
- S677:
- HiFi system Professional DSP
- S697:
- Area-Code 1 for DVD
- S6AA:
- BMW TeleServices
- S6AB:
- Control, Teleservices
- S6FL:
- USB/audio interface
- S6NF:
- Music interface for Smartphone
- S6NR:
- Apps
- S6UH:
- Traffic Information
- S6VC:
- Control, Combox
- S508:
- Park Distance Control (PDC)
- S524:
- Adaptive headlights
- S5DS:
- Emergency release, luggage compartment
- S212:
- National brake system equipment
- S2NX:
- BMW LA wheel M double spoke 303
- S2VB:
- Tyre pressure display
- S302:
- Alarm system
- S316:
- automatic trunk lid mechanism
- S319:
- Integrated universal remote control
- S322:
- Comfort access system
- S323:
- Soft-Close-Automatic doors
- S3AG:
- Reversing camera
- S823:
- Hot-climate version
- S840:
- High-speed setup
- S845:
- Acoustic fasten seat belt reminder
- S853:
- Language version, English
- S876:
- Radio frequency 315 MHz
- S8S4:
- Decoding, variable light distribution
- S8SM:
- Car ident. number visible from outside
- S8TN:
- Daytime driv.lights adjus.via light menu
- S300:
- alpinweiss 3
- S760:
- High gloss shadow line
- S775:
- Headlining anthracite
- S1CA:
- Selection of COP-relevant vehicles
- S1CD:
- Brake Energy Regeneration
- S9AA:
- Outer skin protection
- SA105:
- 105 Ah AGM battery
- SKV01:
- Fuel supply
- SNAD5:
- Leather "Nappa/sattel-braun"
